Name: Customizable 3000 Liters Aluminium Alloy Aircraft Refueling Truck with Jet A1 Tanker for Airport Fueling
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: HOWO 飛行機給油トラック
Price: 137,500.00 USD
Availability: InStock

ホーム製品特別な目的のトラック

Customizable 3000 Liters Aluminium Alloy Aircraft Refueling Truck with Jet A1 Tanker for Airport Fueling

商品の詳細:

起源の場所:	中国
ブランド名:	HOWO
証明:	CE
モデル番号:	HOWO 飛行機給油トラック

お支払配送条件:

最小注文数量:	1台
価格:	negotiate
パッケージの詳細:	ヌード
受渡し時間:	20日
支払条件:	LC、T/T
供給の能力:	50単位/月

連絡先

詳細製品概要

型番:	HOWO 4*2 航空機給油車	伝送方式:	マニュアル
タンク容積:	15001-30000L	馬力:	251-350HP
状態:	新しい	価格:	Factory Direct Sale Price
HSコード:	8704223000	輸送パッケージ:	バルクパッケージ
ハイライト:	3000 Liters Aircraft Refueling Truck , Aluminium Alloy Aviation Fuel Bowser , Jet A1 Tanker Refueler

Customizable 4×2 Aircraft Refueling Truck

High-performance aviation fuel dispensing vehicle designed for safe, accurate, and efficient aircraft refueling operations. Built on a reliable 4×2 commercial chassis with precision pumping, filtration, metering, and safety control systems meeting international civil aviation standards.

Main Technical Specifications

Chassis Specifications

Drive Type: 4×2
Engine Power: 150-220 HP (optional configuration)
Emission Standard: Euro III / Euro V / optional
Transmission: Manual, 6 forward gears
Steering: Power steering
Braking System: Air brake system
Fuel Type: Diesel
Tire Specification: 10.00R20 / 11R22.5 (optional)
Wheelbase: 3,800 - 4,500 mm (customizable)

Tank Specifications

Tank Capacity: 5,000 - 12,000 liters (customizable)
Tank Material: Carbon steel / Aluminum alloy / Stainless steel (optional)
Tank Shape: Elliptical
Compartments: 1-3 compartments (optional)
Internal Treatment: Anti-corrosion coating
Manhole: 500 mm aviation-grade manhole with emergency vent
Bottom Valve: Pneumatic emergency shut-off valve
Anti-wave Baffles: Installed inside tank

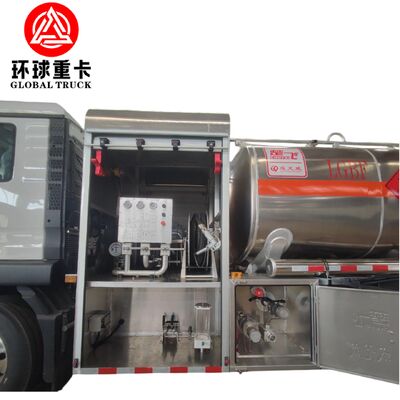

Refueling System

Pump Type: Aviation centrifugal pump
Pump Flow Rate: 600 - 1,200 L/min
Working Pressure: 0.35 MPa (adjustable)
Filtration System: Two-stage aviation filter separator
Filtration Accuracy: ≤ 1 micron
Differential Pressure Gauge: Installed
Meter: Mechanical / Electronic flow meter
Meter Accuracy: ±0.2%
Hose Reel: Spring-driven or hydraulic
Refueling Hose Length: 15-25 meters
Nozzle Type: Under-wing / Over-wing aviation nozzle
Deadman Control System: Standard equipped

Safety Features

Emergency Shut-off System
Anti-static grounding reel
Fire extinguishers (2 units)
Spark arrestor
Overfill protection system
Pressure relief valve
Fuel sampling device
Interlock control system

Optional Configurations

Bottom loading system
Electronic control cabinet
Digital flow meter with printer
Aluminum tank body
Aviation-grade API adaptor
Explosion-proof lighting
GPS tracking system

Product Features & Advantages

High Fuel Cleanliness: Aviation-grade filter separators ensure contamination-free fuel supply
Accurate Metering: High-precision metering system guarantees accurate fuel delivery and transparent transactions
Efficient Refueling: High-flow aviation pump shortens aircraft turnaround time
Reliable Operation: Durable commercial chassis with stable driving performance
Safety-Oriented Design: Multiple safety interlocks and emergency shut-off systems ensure operational safety
Customizable Capacity: Tank capacity and configuration customizable according to airport scale and operational needs

Application Scenarios

Civil airports
Military airbases
Private aviation terminals
Aircraft maintenance facilities (MRO)
Aviation fuel service companies
Flight training schools
Helicopter refueling stations

Suitable for refueling:

Commercial passenger aircraft
Cargo aircraft
Business jets
Helicopters
Military aircraft

Frequently Asked Questions

What type of fuel can this truck handle?

Designed for Jet A-1, Jet A, and other approved aviation turbine fuels.

Can the tank capacity be customized?

Yes. Tank volume can be customized from 5,000L to 12,000L according to customer requirements.

Does the truck meet international aviation standards?

Filtration and refueling system can be configured to comply with international aviation fueling standards upon request.

What is the filtration accuracy?

Standard configuration provides filtration accuracy of ≤ 1 micron.

Is the meter mechanical or digital?

Both mechanical and electronic flow meters are available. Digital versions with printer are optional.

Can it be built with an aluminum tank?

Yes, aluminum alloy tank bodies are available for weight reduction and corrosion resistance.

What is the refueling flow rate?

Standard pump delivers 600-1,200 liters per minute.

Do you provide spare parts support?

Yes. We provide long-term spare parts supply and technical support.

After-Sales Support

Technical guidance before shipment
Operation and maintenance manual
Online technical assistance
Spare parts supply
Remote troubleshooting support
