High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and SINOTRUK HOWO Chassis

High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and SINOTRUK HOWO Chassis

High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and SINOTRUK HOWO Chassis
High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and SINOTRUK HOWO Chassis
High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and SINOTRUK HOWO Chassis
商品の詳細:
起源の場所: 中国
ブランド名: SINOTRUK
証明: CE
モデル番号: 橋梁点検車
お支払配送条件:
最小注文数量: 1個
価格: 交渉可能
パッケージの詳細: ヌード
受渡し時間: 35営業日
支払条件: LC、T/T
供給の能力: 500台/年
連絡先
詳細製品概要
タイプ: ブリッジ検査トラック 排出基準: ユーロ 4/2/5/6
証明: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE 伝送方式: マニュアル
状態: 新しい 座席数: 2~3
HSコード: 8705909990 燃料タンク容量: 400L
ハイライト:

12m-20m Working Height Bridge Inspection Truck

,

Euro 4/2/5/6 Emission Standard Under Bridge Access Platform

,

SINOTRUK HOWO Chassis Bridge Maintenance Vehicle

High Performance Mobile Units for Detailed Bridge Inspections

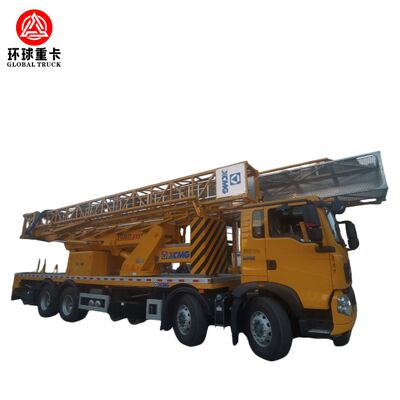

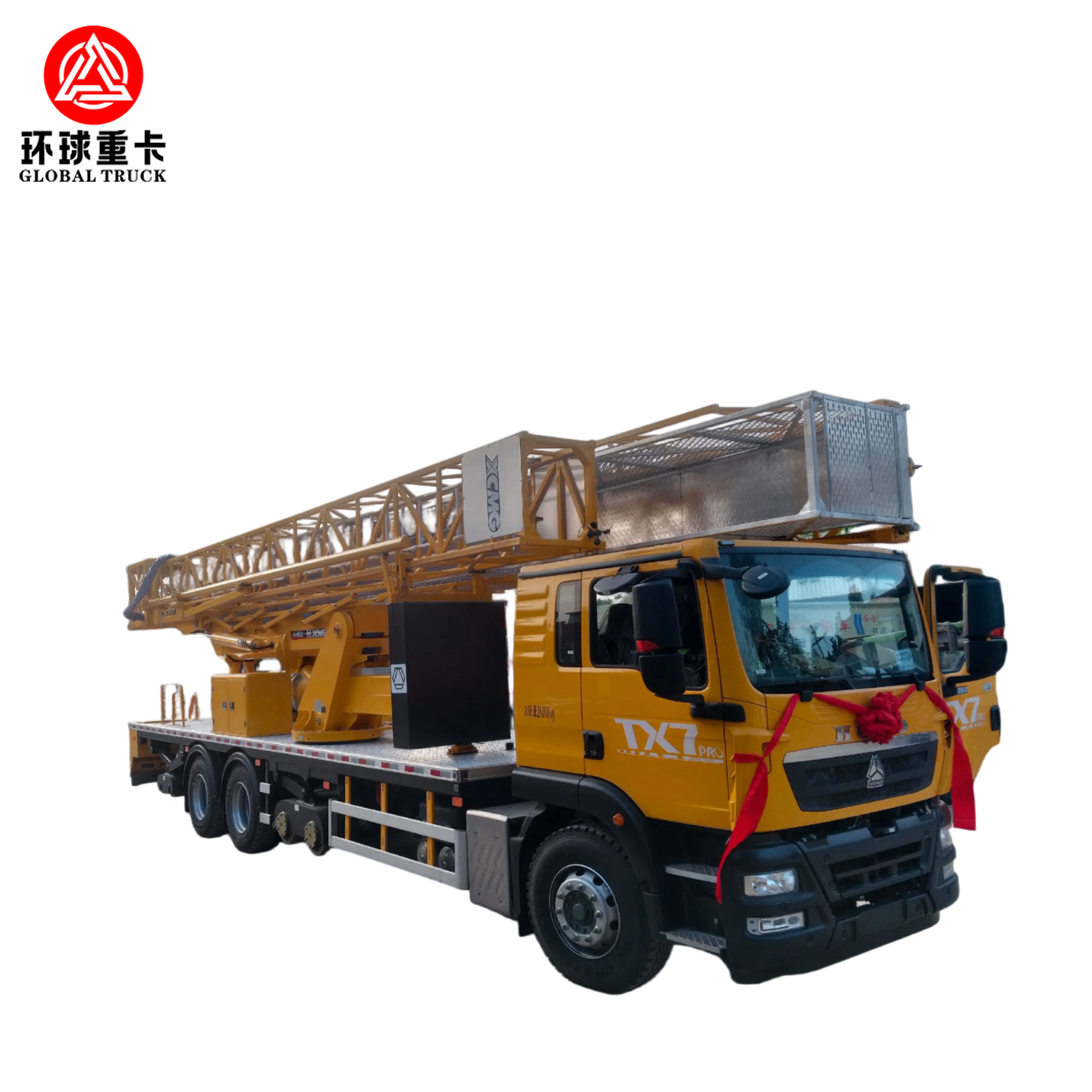

This bridge inspection truck integrates an XCMG working platform with a SINOTRUK HOWO chassis. It is designed for bridge inspection, maintenance, and repair operations with high safety, stability, and efficiency.
Key Advantages
  • Reliable combination of XCMG upper structure and SINOTRUK chassis
  • Stable performance suitable for rough road conditions
  • Flexible boom operation for complex bridge structures
  • Easy to operate with user-friendly control system
  • Low maintenance cost and strong durability
  • Widely applicable for international infrastructure projects
Technical Specifications
Chassis Specifications
Brand SINOTRUK HOWO
Drive Type 4x2 / 6x4 (optional)
Engine SINOTRUK / Weichai diesel engine
Horsepower 266-420 HP
Transmission 10-speed or 12-speed manual gearbox
Emission Standard Euro II / III / IV / V (customizable)
Steering Left-hand drive or right-hand drive
Upper Structure Specifications
Brand XCMG
Working Height 12m / 14m / 16m / 18m / 20m (customizable)
Platform Load Capacity 200-400 kg
Horizontal Reach 8m-12m
Rotation Optional 360-degree continuous rotation
Boom Type Telescopic or folding arm
Control System Electro-hydraulic control system
Hydraulic System
  • High-pressure hydraulic system with stable performance
  • Hydraulic oil cooling system
  • Precision control valves and cylinders
  • Overload protection and pressure relief system
Safety Features
  • Hydraulic outriggers with automatic leveling
  • Anti-overturning protection system
  • Emergency stop system (dual control)
  • Platform safety guardrails
  • Non-slip working platform
  • Limit protection for height and rotation
Electrical System
  • 24V DC electrical system
  • Waterproof and dustproof wiring
  • LED working lights
  • Optional remote control system
  • Emergency backup power system
Applications
  • Bridge inspection and maintenance
  • Highway and overpass maintenance
  • Railway bridge inspection
  • Municipal infrastructure maintenance
  • Emergency repair operations
Customer Feedback
Kenya: "The truck performs well under our working conditions. It is stable and easy to operate, and the hydraulic system works smoothly."
Tanzania: "The equipment meets our expectations. The structure is strong and suitable for road and bridge maintenance work."
Nigeria: "Good quality chassis and reliable upper structure. The machine is easy to maintain and operate."
Philippines: "The platform is stable and safe. Our team can use it efficiently after simple training."
Frequently Asked Questions
What is the maximum working height?
The working height ranges from 12m to 20m depending on configuration. Custom options are available.
Is the vehicle suitable for rough road conditions?
Yes. The SINOTRUK HOWO chassis is designed for heavy-duty and challenging road environments.
Can the specifications be customized?
Yes. We can customize working height, chassis type, emission standard, and other parameters.
Is training provided?
Yes. We provide operation manuals, videos, and optional technical support.
What is the warranty period?
Typically 12 months for both chassis and upper structure.
Do you provide spare parts?
Yes. Spare parts and technical support are available for long-term use.
