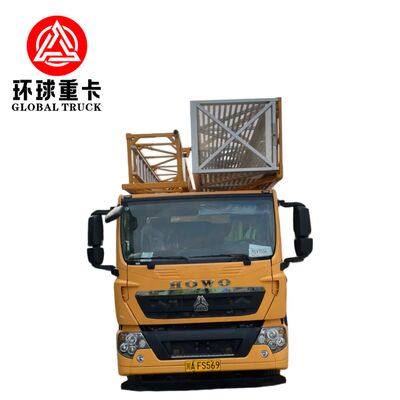

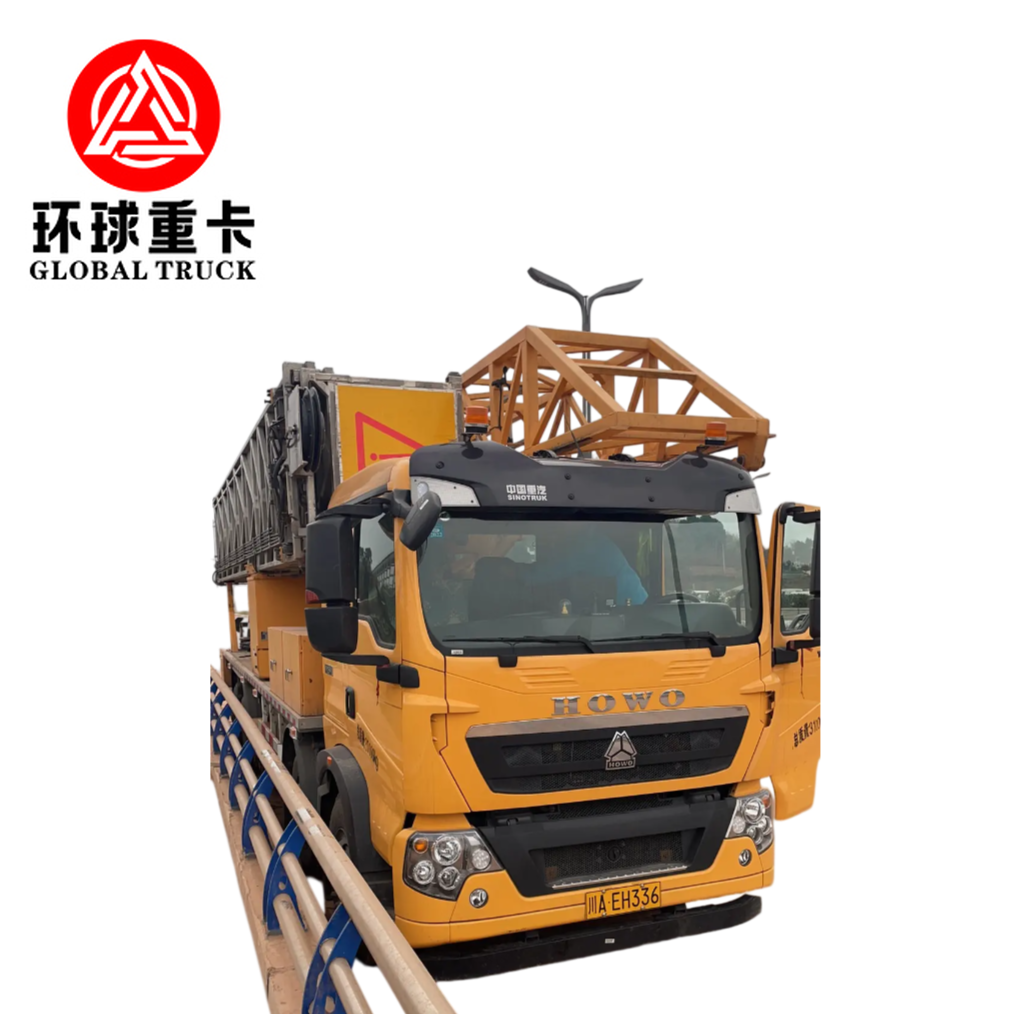

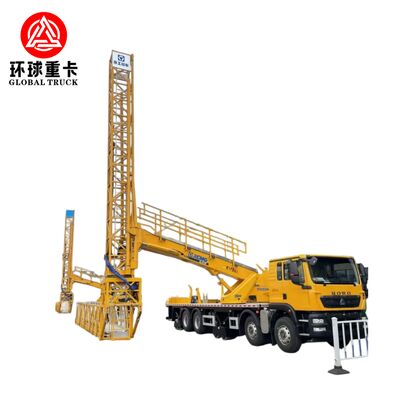

2026 Modern Bridge Inspection Truck with 14m-20m Working Height, Euro 3 Emission Standard, and Hydraulic Under-Bridge System for Precision Engineering

2026 Modern Bridge Inspection Truck with 14m-20m Working Height, Euro 3 Emission Standard, and Hydraulic Under-Bridge System for Precision Engineering

2026 Modern Bridge Inspection Truck with 14m-20m Working Height, Euro 3 Emission Standard, and Hydraulic Under-Bridge System for Precision Engineering
2026 Modern Bridge Inspection Truck with 14m-20m Working Height, Euro 3 Emission Standard, and Hydraulic Under-Bridge System for Precision Engineering
2026 Modern Bridge Inspection Truck with 14m-20m Working Height, Euro 3 Emission Standard, and Hydraulic Under-Bridge System for Precision Engineering
商品の詳細:
起源の場所: 中国
ブランド名: SINOTRUK
証明: CE
モデル番号: 橋梁点検車
お支払配送条件:
最小注文数量: 1個
価格: 交渉可能
パッケージの詳細: ヌード
受渡し時間: 35営業日
支払条件: LC、T/T
供給の能力: 500台/年
連絡先
詳細製品概要
タイプ: ブリッジ検査トラック 排出基準: ユーロ3
証明: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE 伝送方式: マニュアル
状態: 新しい 座席数: 2~3
HSコード: 8705909990 燃料タンク容量: 400L
ハイライト:

14m-20m Working Height Bridge Inspection Truck

,

Euro 3 Emission Standard Under Bridge Access Platform

,

Hydraulic Under-Bridge System Bridge Maintenance Vehicle

2026 Brand New Under Bridge Access Platforms for Construction Projects in Egypt
Product Overview

This 2026 under bridge access platform is engineered for construction and maintenance projects in Egypt. It combines a heavy-duty truck chassis with an advanced hydraulic under-bridge working system, delivering safe and efficient access to bridge structures for inspection, repair, and maintenance operations.

Market Positioning for Egypt
  • Designed for large-scale construction and infrastructure projects
  • Suitable for government and contractor applications
  • Adapted to high temperature and dusty environments
  • Ideal for bridge construction, inspection, and maintenance
  • Cost-effective alternative to imported European equipment
Key Technical Specifications
Chassis System
  • Type: Heavy-duty truck chassis (HOWO optional)
  • Drive Type: 4x2 / 6x4 (6x4 recommended)
  • Engine Power: 336-420 HP
  • Transmission: 10-speed / 12-speed manual
  • Fuel Type: Diesel
  • Steering: Left-hand drive
  • Suitable for long-distance and desert road operation
Under Bridge Access Platform
  • Working Height: 14m - 20m
  • Horizontal Reach: up to 12m
  • Lowering Depth: up to 8-10m
  • Platform Load Capacity: 250-400 kg
  • Platform Type: Suspended working platform
  • Boom Type: Telescopic or folding
  • Rotation: Optional 180° / 360°
Hydraulic System
  • Electro-hydraulic proportional control
  • Smooth and stable operation
  • Overload protection system
  • Oil cooling system for continuous operation
  • Designed for high-temperature environments
Control System
  • Dual control (platform + ground)
  • Optional wireless remote control
  • Emergency stop function
  • Safety interlock system
  • Simple and user-friendly interface
Key Advantages for Egypt Market
  • Suitable for desert and high-temperature conditions
  • Strong chassis for long-distance and heavy-duty work
  • Stable working platform for safe operation
  • Easy maintenance with standard components
  • Lower cost compared to European brands
  • Proven performance in North Africa and Middle East
Efficiency Advantage

This equipment improves construction efficiency by:

  • Providing fast access under bridge structures
  • Reducing need for scaffolding
  • Increasing work safety
  • Reducing labor and time cost
  • Supporting continuous construction operations
Typical Applications in Egypt
  • Bridge construction projects
  • Highway maintenance and inspection
  • Urban infrastructure projects (Cairo, Alexandria)
  • Railway bridge maintenance
  • Government engineering projects
Safety Features
  • Hydraulic outriggers with automatic leveling
  • Anti-overturning protection system
  • Emergency lowering system
  • Load limit protection
  • Anti-slip platform with guardrails
  • Multi-level safety interlock system
Customer Feedback (Middle East & Africa)
Egypt Client: "The equipment works well in hot conditions and is suitable for our construction projects."
Saudi Arabia Client: "Stable operation and good hydraulic performance."
Algeria Client: "Reliable and easy to maintain."
FAQ (Egypt-Oriented)
Can this machine work in desert conditions?
Yes, it is designed for high temperature and dusty environments.
What working height is recommended?
16m-20m is commonly used for construction projects.
Is it suitable for large projects?
Yes, it is designed for infrastructure and construction use.
Is operation complicated?
No, the system is simple and easy to operate.
Can it be customized?
Yes, we can adjust configuration based on project needs.
Commercial Information
  • Condition: Brand New (2026 Model)
  • Warranty: 12 months
  • Delivery Time: 30-45 days
  • Payment Terms: T/T
  • Trade Terms: FOB / CIF / CFR
  • Packaging: Waxed + RO-RO shipment
