| 起源の場所: | 中国 |
| ブランド名: | howo |
| 証明: | iso9000 |
| モデル番号: | Howoミキサートラック |
| 最小注文数量: | 1台 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ヌード |
| 受渡し時間: | 40労働者の日 |
| 支払条件: | LC、T/T |
| 供給の能力: | 500単位/月 |
| 製品名: | ミキサートラック | 伝送方式: | マニュアル |
|---|---|---|---|
| 排出基準: | euro2/3 | 燃料: | ディーゼル |
| ドライブモード: | 6x4 | 最大馬力: | > 400hp |
| 状態: | 新しい | 輸送パッケージ: | 容器、バルク貨物、平らな棚、RO-RO |

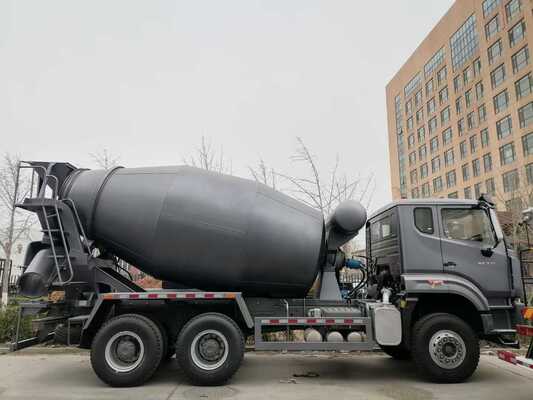

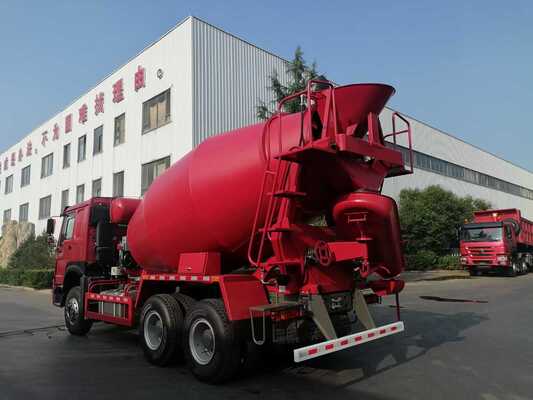

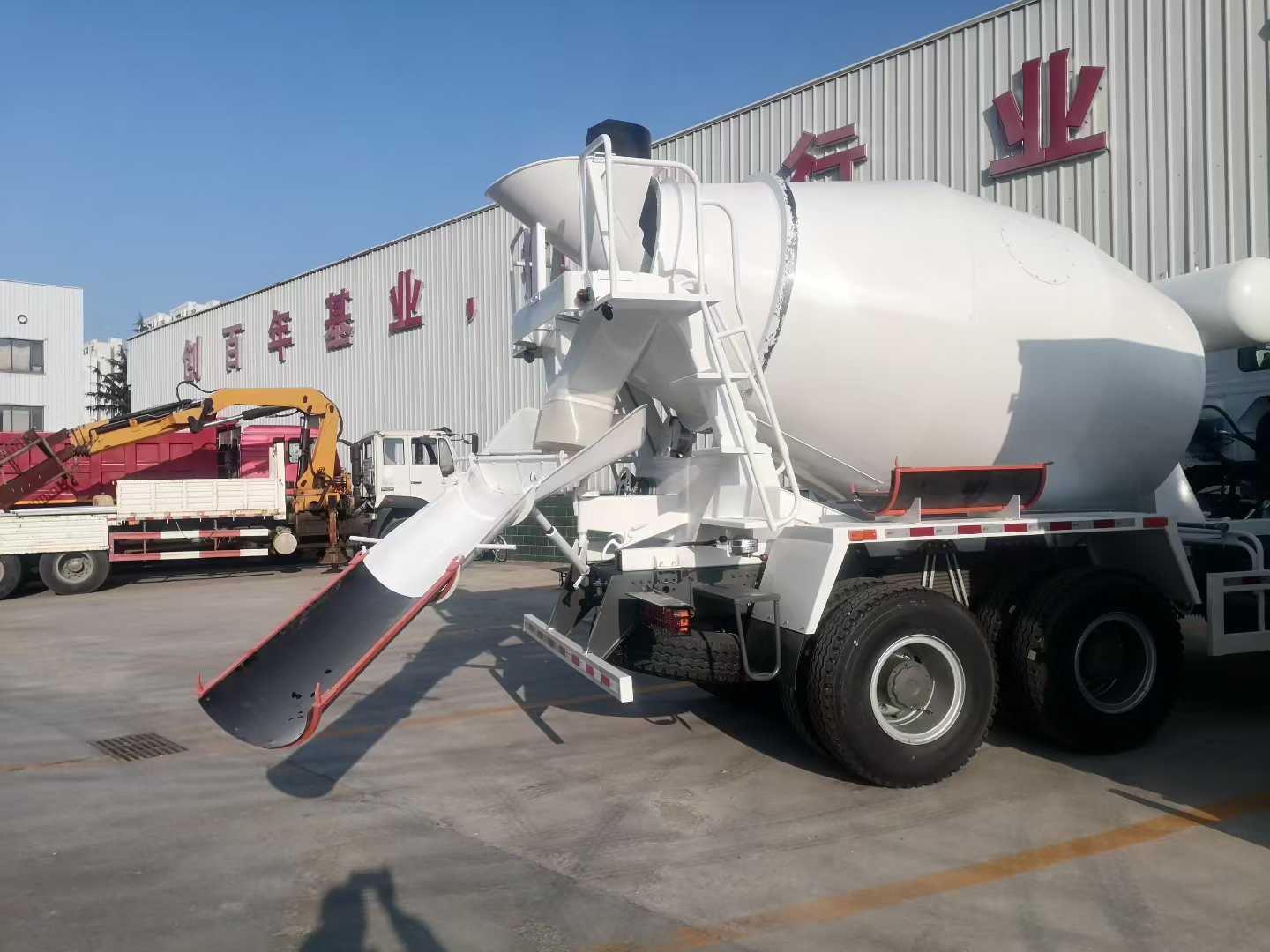

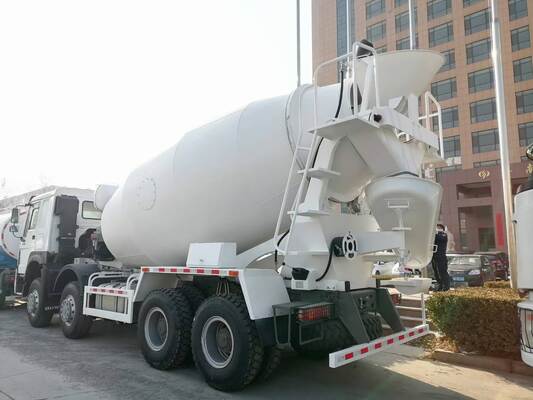

Model: SINOTRUK HOWO 6x4 Concrete Mixer Truck
Target Market: Africa (Nigeria, Algeria, Kenya, South Africa, DRC, etc.)
Condition: 100% Brand New
Origin: Made in China (Shandong & Hubei)
| Parameter | Specification | Notes for Africa |
|---|---|---|
| Drive Type | 6x4 | Standard for heavy load stability on rough terrain |
| Chassis Model | ZZ1257N3841W / ZZ5257GJBN3847 | Heavy-duty construction |
| Gross Vehicle Weight | 25,000 kg - 35,000 kg | Suitable for maximum payloads |
| Engine Model | WD615.69 / WD615.47 (Sinotruk Steyr Technology) | Euro II (Mechanical Pump). Preferred for Africa due to low diesel sulfur tolerance and easy maintenance |
| Horsepower | 336 HP – 380 HP | Sufficient torque for wet concrete and muddy sites |
| Gearbox | HW19710 (10 Forward + 2 Reverse) | Manual transmission. Durable and easy to find parts |
| Tire Specification | 12.00R20 (10+1 pcs, with spare) | Heavy-duty radial. High ground clearance for rocky roads |
| Fuel Tank | 300L - 400L Capacity | Long working range between refuels |
The upper parts are customized according to African road conditions (High-strength steel).
| Parameter | Data | Advantage |
|---|---|---|
| Effective Capacity | 8m³ - 12m³ (10m³ is the "Sweet Spot" for 6x4) | Balances legal weight limits with project volume |
| Tank Material | High-strength耐磨 Steel (6mm tank / 5mm blade) | Increased impact resistance against rocks |
| Hydraulic System | Imported Brands: PMP (Italy), Eaton (USA), Bonfiglioli (Italy), or Rexroth (Germany) | Zero-leak guarantee. Prevents downtime due to overheating |
| Reducer | Bonfiglioli (Italy) / ZF (Germany) Technology | High reliability for continuous mixing |
| Water Tank | Integrated pressure water tank (400L) | Cleaning system included |
| Discharge Height | Optimized for African ready-mix trucks | Fits standard concrete pumps and wheelbarrows |
To ensure the truck survives the "African Terrain & Climate," the following configurations are standard on this export model:
Desert Specification Air Filter: Heavy-duty filtration system to protect the engine from fine sand and dust particles found on African unpaved roads .
High-Temperature Cooling: Upgraded radiator and cooling fan clutch to prevent boiling over in 40°C+ climates (e.g., Northern Nigeria, Sudan) .
Heavy-Duty Cabin: HW76 Cab with a sleeper berth. Includes air conditioning (mandatory for Africa) and steel bumper for pushing obstacles .
Chassis Reinforcement: Double frame rails (8+8 mm) to withstand torsional stress on pothole-ridden roads .
Corrosion Protection: Anti-rust treatment on the mixer drum to withstand wash-downs and humidity.
A: Yes. Most African countries (Nigeria, Ghana, DRC, Kenya, Tanzania, Algeria, etc.) have no sulfur restrictions on diesel. Euro II (Mechanical) engines are preferred because they:
Tolerate high-sulfur diesel (Euro V engines would fail quickly).
Are easy to fix (No complex computers/ECU needed; local mechanics can repair them).
Have cheaper spare parts.
A: Very fast. Sinotruk has a massive parts warehousing network. We ensure 7–14 days delivery for emergency parts to major ports like Mombasa, Dar es Salaam, Lagos, Tema, or Durban . We also provide a full parts list with part numbers for local ordering.
A: Standard terms are 30% T/T (Bank Transfer) as a deposit to start production, and 70% balance before shipment or against a copy of the Bill of Lading. For containerized spare parts, we accept L/C at sight.
A: Yes. The 6x4 configuration keeps driving wheels on the ground. The ground clearance is high, and the 12.00R20 tires are designed for construction sites. We recommend adding the front steel bumper option to protect against tall grass and rocks.
A: While "Made in China," Sinotruk HOWO is the Number 1 heavy-duty truck brand in China (CNHTC). It is the Chinese supplier.
Quality Standard: Certified with CCC, ISO9001.
Inspection: You can pay for a third-party inspection (SGS, BV, or TUV) at our factory before we ship.
Warranty: 1 year or 20,000 km (whichever comes first) for the chassis .
A: Yes. We can paint the truck in your company colors. Standard export colors:, White, or HOWO Red. We can also print your logo on the door .
A: We ship via Roll-on/Roll-off (RoRo) vessels (the driver drives it onto the ship) or in Bulk (in a 40ft flat rack container for parts). We handle all logistics from the factory to the port (Qingdao/Shanghai/Tianjin) and customs clearance for export.
Economic Model: HOWO 6x4 + WD615.69 Engine (336HP) + 10m³ Tank + PMP Hydraulics.
Heavy-Duty Model: HOWO 6x4 + WD615.47 Engine (371HP) + 12m³ Tank + Bonfiglioli/Eaton Hydraulics.
