| 起源の場所: | 中国 |
| ブランド名: | SEM |
| 証明: | iso/ccc |
| モデル番号: | 655D |
| 最小注文数量: | 1台 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ヌード |
| 受渡し時間: | 30-45勤務日 |
| 支払条件: | LC、T/T |
| 供給の能力: | 1か月あたり400ユニット/単位 |
| 型番: | 655D | 定格荷重: | 5トン |
|---|---|---|---|
| 伝染 ; 感染: | 油圧 | ロードおよびアンロード モード: | フロントディスチャージ |
| ウォーキングモード: | 車輪付き | タイプ: | 小さい積込み機 |
| バケット容量: | 3m3 | 力: | 162kw |
| サイズ: | 8 085X2 963X3 463mm | ホイールベース: | 3300mm |

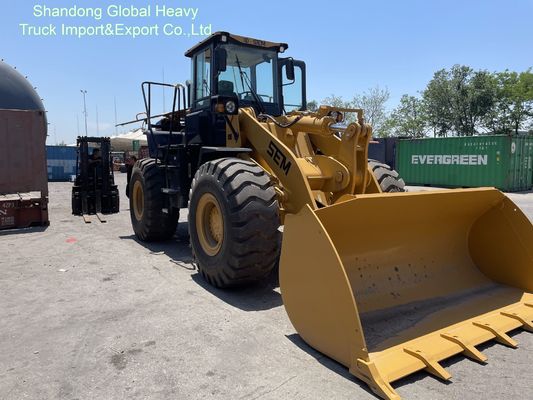

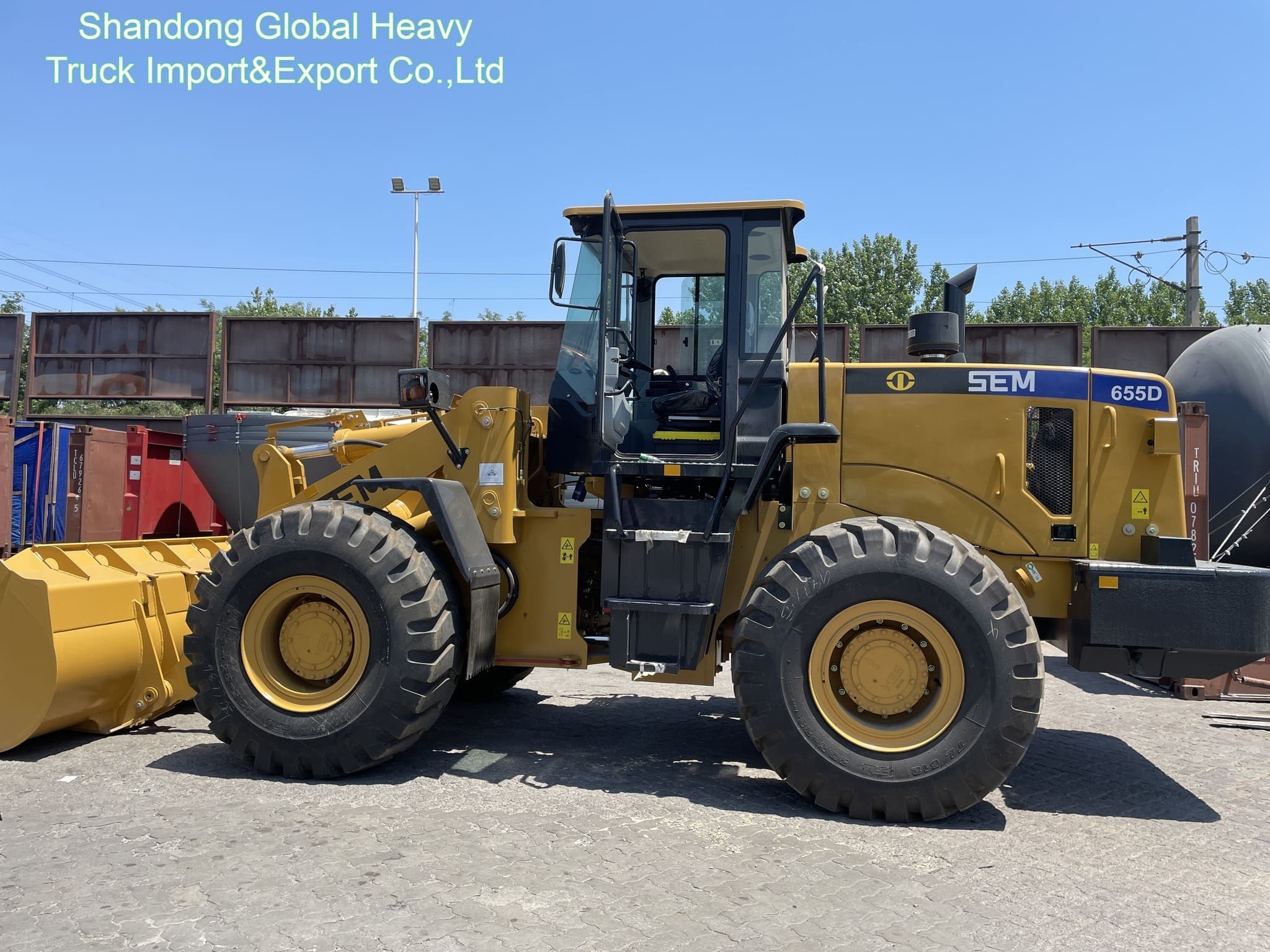

The 655D wheel loader is a brand new, 5‑ton class loading machine designed for heavy‑duty applications including construction sites, sand and gravel yards, mines, ports, and bulk material handling. Built on a proven Chinese platform, this loader combines a powerful diesel engine (Weichai or Yuchai), a rugged Z‑bar linkage, and a spacious operator cab to deliver high productivity at a very competitive price.
Available immediately in stock for fast delivery. The 655D features a Tier 2 or Tier 3 emission compliant engine (selectable), a standard bucket capacity of 2.5 – 3.0 m³ (depending on material density), and an operating weight of approximately 16,500 – 17,500 kg. With a rated load of 5,000 kg (5 tons), this machine is an ideal choice for customers who need reliable performance without paying a premium for international brands.
Made in China – In stock now, ready for shipment from major Chinese ports.
| Parameter | Details |
|---|---|
| Model | 655D (5‑ton class wheel loader) |
| Condition | Brand new (factory) – in stock |
| Rated Load | 5,000 kg (5 tons) |
| Bucket Capacity | 2.5 – 3.0 m³ (standard 2.8 m³) |
| Operating Weight | 16,500 – 17,500 kg |
| Engine | Weichai WP10 or Yuchai YC6J / YC6K series |
| Engine Power | 162 – 175 kW (approx. 220 – 235 HP) |
| Emission Standard | Tier 2 or Tier 3 (China II / III) – specify |
| Transmission | Planetary power shift (4 forward / 3 reverse) |
| Max Travel Speed | 38 – 42 km/h |
| Max Dumping Height | 3,200 – 3,400 mm |
| Dumping Reach | 1,100 – 1,200 mm |
| Breakout Force | 160 – 175 kN |
| Steering | Articulated frame, 35° – 38° articulation |
| Turning Radius (outer) | 5,800 – 6,200 mm |
| Tires | 23.5‑25 (16 ply) – new |
| Fuel Tank Capacity | 280 – 320 L |
| Hydraulic Tank Capacity | 200 – 240 L |
| Overall Dimensions (L×W×H) | 8,100 × 3,000 × 3,500 mm (approx.) |
| Wheelbase | 3,200 – 3,300 mm |
| Ground Clearance | 450 mm |
| Warranty | 12 months or 2,000 hours |
Specifications are typical for 655D class loaders from leading Chinese manufacturers. Exact values may vary slightly by brand (e.g., SDLG, Longking, XCMG, Liugong). Please request official datasheet for your chosen brand.
Powerful & Efficient Engine – The 655D is powered by a Weichai or Yuchai diesel engine, both industry‑proven Chinese powerplants with excellent fuel economy and global parts availability. Choose Tier 2 for simpler maintenance (no DPF/SCR) or Tier 3 for cleaner emissions.
High Breakout Force – The Z‑bar linkage geometry delivers over 160 kN of breakout force, easily penetrating hard stockpiles and loading dense materials like rock, gravel, or clay.
Rugged Frame & Axles – The articulated frame is built with high‑strength steel plates and features a central hinge pin with oversized bearings for long life. Heavy‑duty drive axles with limited slip differentials provide traction in muddy or loose conditions.
Comfortable Operator Environment – The spacious, sound‑insulated cab offers excellent all‑round visibility, a fully adjustable suspension seat, ergonomic joystick controls, and optional air conditioning. The dashboard provides real‑time monitoring of engine parameters, hydraulic temperature, and working hours.
Easy Maintenance – A wide‑opening engine hood, grouped service points, and centralized grease fittings reduce daily maintenance time. All filters (air, fuel, oil, hydraulic) are standard and available worldwide.
In Stock & Ready to Ship – No long factory lead times. Units are available now for immediate loading and shipment.
Construction – Loading sand, gravel, aggregate, soil, and concrete materials
Sand & Gravel Quarries – Truck loading, stockpile management, pit operations
Mining – Ore handling, overburden removal, coal loading (with optional rock bucket)
Ports & Logistics – Bulk cargo loading (coal, grain, fertilizer, ore)
Road Building – Base material loading, asphalt plant feeding
Agriculture – Grain, feed, fertilizer, silage handling
Q1: What brand is the 655D wheel loader?
A: The 655D is a standard 5‑ton wheel loader configuration offered by several top Chinese manufacturers including SDLG, Longking, XCMG, and Liugong. We can supply the brand you prefer. All use Weichai or Yuchai engines and share similar specifications.
Q2: What engine does the 655D use?
A: Standard engines are Weichai WP10 series (162–175 kW) or Yuchai YC6J/YC6K series. Both are high‑quality Chinese diesel engines with worldwide parts support.
Q3: Is the 655D available with Tier 3?
A: Yes. We offer both Tier 2 (China II) and Tier 3 (China III) versions. Tier 2 is simpler and more tolerant of lower fuel quality; Tier 3 is cleaner but still avoids complex aftertreatment systems. Please specify your local emission requirements.
Q4: What is the standard bucket size?
A: Standard bucket is 2.8 m³ for general materials (density ~1.6‑1.8 t/m³). Optional buckets: 2.5 m³ rock bucket (reinforced), 3.0‑3.2 m³ light material bucket (coal, grain, wood chips).
Q5: What is the price for a brand new 655D in stock?
A: FOB China main port (Shanghai, Qingdao, Tianjin): approximately USD 32,000 – 42,000 depending on brand, engine choice, bucket type, tires, and optional features. Because we have stock units, pricing is very competitive. Contact us for a firm quotation.
Q6: Can I get a right‑hand drive (RHD) version?
A: The 655D is manufactured as left‑hand drive (LHD) as standard. RHD is available on request with a lead time of 4‑6 weeks. Stock units are LHD.
Q7: What is the fuel consumption?
A: Under normal working conditions (loading sand/gravel, 40‑50 cycles per hour), fuel consumption is 16‑22 L/hour. The Weichai engine’s low‑speed torque design helps optimize fuel efficiency.
Q8: Do you provide spare parts?
A: Yes. We stock genuine parts for all major components: engine (Weichai/Yuchai), transmission, axles, hydraulic cylinders, buckets, tires, and filters. For bulk orders, we include a starter parts kit.
Q9: How is the loader shipped?
A: Shipped in a 40‑foot flat rack or open‑top container, partially disassembled (bucket removed, cab lowered if needed). Main ports: Shanghai, Qingdao, Tianjin, Guangzhou. Transit: 25‑45 days to Africa, Asia, Middle East, South America.
Q10: What documents do you provide for customs?
A: Commercial invoice, packing list, bill of lading, Certificate of Origin (“Made in China”), export declaration, engine/chassis number verification, and Tier 2/Tier 3 compliance statement (if required).
Q11: What warranty do you offer?
A: 12 months or 2,000 operating hours on engine, transmission, hydraulic system, and axles. Extended warranty options available.
Q12: Can I inspect the loader before buying?
A: Yes. Because we have stock, we can provide photos, videos, and live walkaround of the actual unit you will receive. You are also welcome to visit our yard in China.
Q13: What is the minimum order quantity?
A: 1 unit is accepted. Volume discounts for 2, 3, 5+ units.
Q14: How long from order to shipment?
A: Since the units are in stock, we can load within 7‑10 days after balance payment. Sea freight adds 25‑45 days.
Q15: What attachments are available?
A: Rock bucket, 4‑in‑1 bucket, light material bucket, pallet forks, log grapple, snow blade, quick coupler, and others. Please specify your application.
Q16: Is the 655D suitable for rocky conditions?
A: For heavy rock, we recommend the rock bucket option (thicker wear plates, reinforced cutting edge, additional guarding). For extreme rock applications, consider a larger model (e.g., 6‑ton class).
Q17: Can you paint the loader in my company colors?
A: Yes, for orders of 3+ units we offer custom painting (RAL code or sample). Stock units are standard yellow or orange.
Q18: Do you offer financing or LC terms?
A: We accept T/T (30% deposit, 70% balance before shipment) and LC at sight for established customers. Financing is not provided directly.
Select brand & configuration – choose preferred brand (SDLG, XCMG, Liugong, etc.), engine (Weichai/Yuchai), emission tier, bucket type, tires.
Request stock unit photos & video – we send actual unit images and a walkaround video.
Proforma invoice – issued with full specifications and price.
Deposit – 30% by T/T.
Final inspection – we send pre‑shipment video for your approval.
Balance payment – 70% before loading.
Loading & shipment – within 7‑10 days.
Delivery – 25‑45 days to your port.
